Transformer Substation
Rajkot, Gujarat, India — Est. 1992

Transformer
Roller
Manufacturers

India's trusted source for precision CI & CS transformer rollers. Standard and customised solutions from 100 mm to 440 mm diameter, with load capacity up to 80 tons.

View Our Products Request a Quote
30+
Years of Excellence
80T
Max Load Capacity
440mm
Max Roller Diameter
ISO
9001:2015 Certified
Growmore 380mm Heavy Duty Roller Assembly
380mm Twin Flange Roller
Load Capacity: 80 Tons — Cast Steel Construction
Trusted By
GETCO PGVCL Reliance Adani Vijay Electricals Shilchar Technologies + Many More
Growmore Engineering Works factory floor
Bulk roller production
1992
Est. Year
About Growmore Engineering Works
Built on
Precision &
Trust

Growmore Engineering Works is a Rajkot-based manufacturer of heavy-duty transformer rollers, supplying reputed transformer manufacturers and power utilities across India since 1992.

Our manufacturing journey began by supplying precision oil engine bodies to Kirloskar, building a strong foundation in quality casting and precision machining. Since 2006, we have focused exclusively on transformer roller systems.

Every roller is CNC-machined to tight tolerances, load-tested, and supplied with full test documentation — Type Test Certificate, Material Test Certificate, and Load Capacity Test Certificate.

⚙
Specialised Manufacturing
Dedicated transformer roller production with deep domain expertise.
✓
ISO 9001:2015
Certified quality management for consistent, reliable output.
📋
All Test Certificates
Type Test, Material & Load Capacity certificates provided.
⊞
Custom Solutions
Any size, any capacity — designed to your specifications.
Product Range
Transformer
Roller Systems

Manufactured in Cast Iron (CI) and Cast Steel (CS), our rollers are available in flat and flange configurations from 100mm to 440mm diameter. Supplied as roller only, or with complete carrier assembly. All types of test certificates provided with every order.

100mm Flat Roller
5 TON
100 mm
Light Duty Flat Roller
Compact cast iron or cast steel flat roller for light-duty transformer handling. Standard flat configuration with bracket. Available in red oxide or primer finish.
5T Flat Type CI / CS
With Bracket Assembly

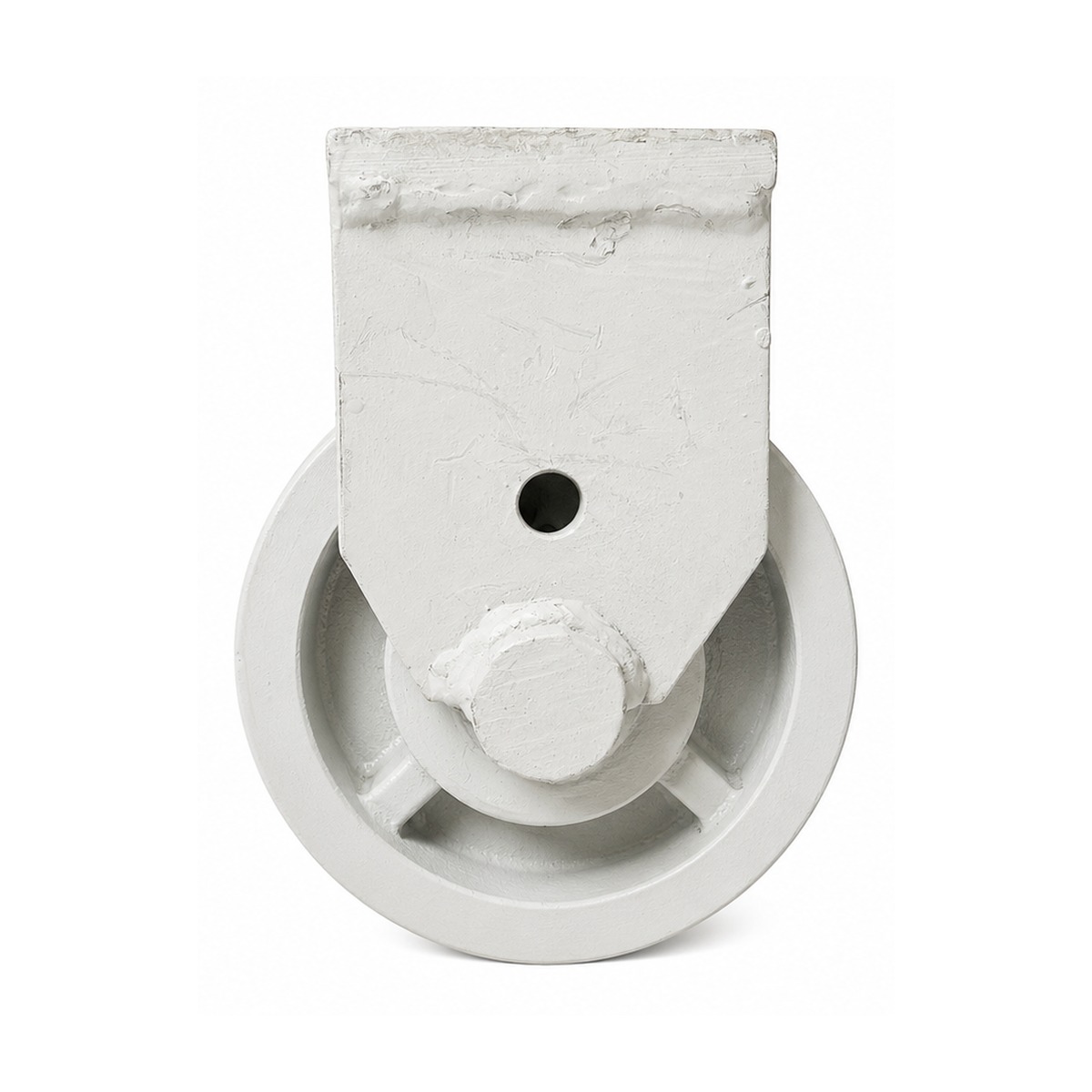

150mm Roller
8 TON
150 mm
Light Duty Roller
Flat and flange designs for light-to-medium transformer handling. Pin, clamp, and locking pin arrangements available. Suitable for rail-guided applications.
8T Flat / Flange CI / CS
Clamp & Pin Options
200mm Roller
10 TON
200 mm
Medium Duty Roller
For controlled load transfer and equipment positioning. With or without clamp. Optional locking bolt available. Cast Iron and Cast Steel variants.
10T Flat / Flange CI / CS
W / W/O Carrier
250mm Roller
15 TON
250 mm
Medium Heavy Roller
Designed for demanding environments requiring higher load distribution, structural durability, and long service life. Flat and flange options in CI or CS.
15T Flat / Flange CI / CS
W / W/O Carrier
270mm Carrier Roller
20 TON
270 mm
CS Flange Roller + Carrier
Cast steel or cast iron flange roller with carrier assembly. Designed for high-load guided transport systems. Supplied with or without carrier.
20T Flange Type CS / CI
W / W/O Carrier

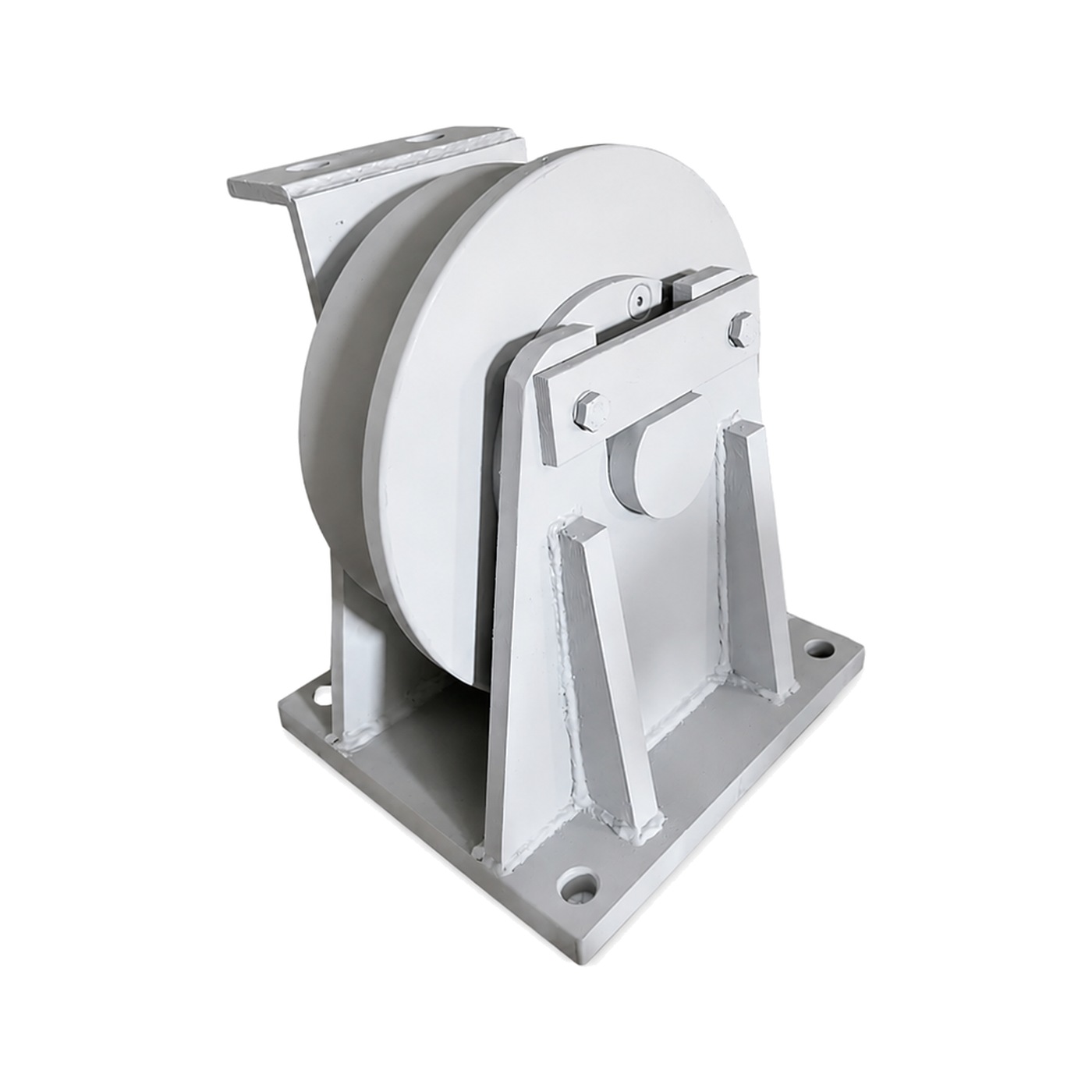

320mm Single Flange Roller
30 TON
320 mm
CS Single Flange Roller + Carrier
Heavy-duty flange roller for controlled movement of large transformer assemblies. Precision rail-guided. Supplied with or without carrier assembly.
30T Single Flange CS / CI
W / W/O Carrier

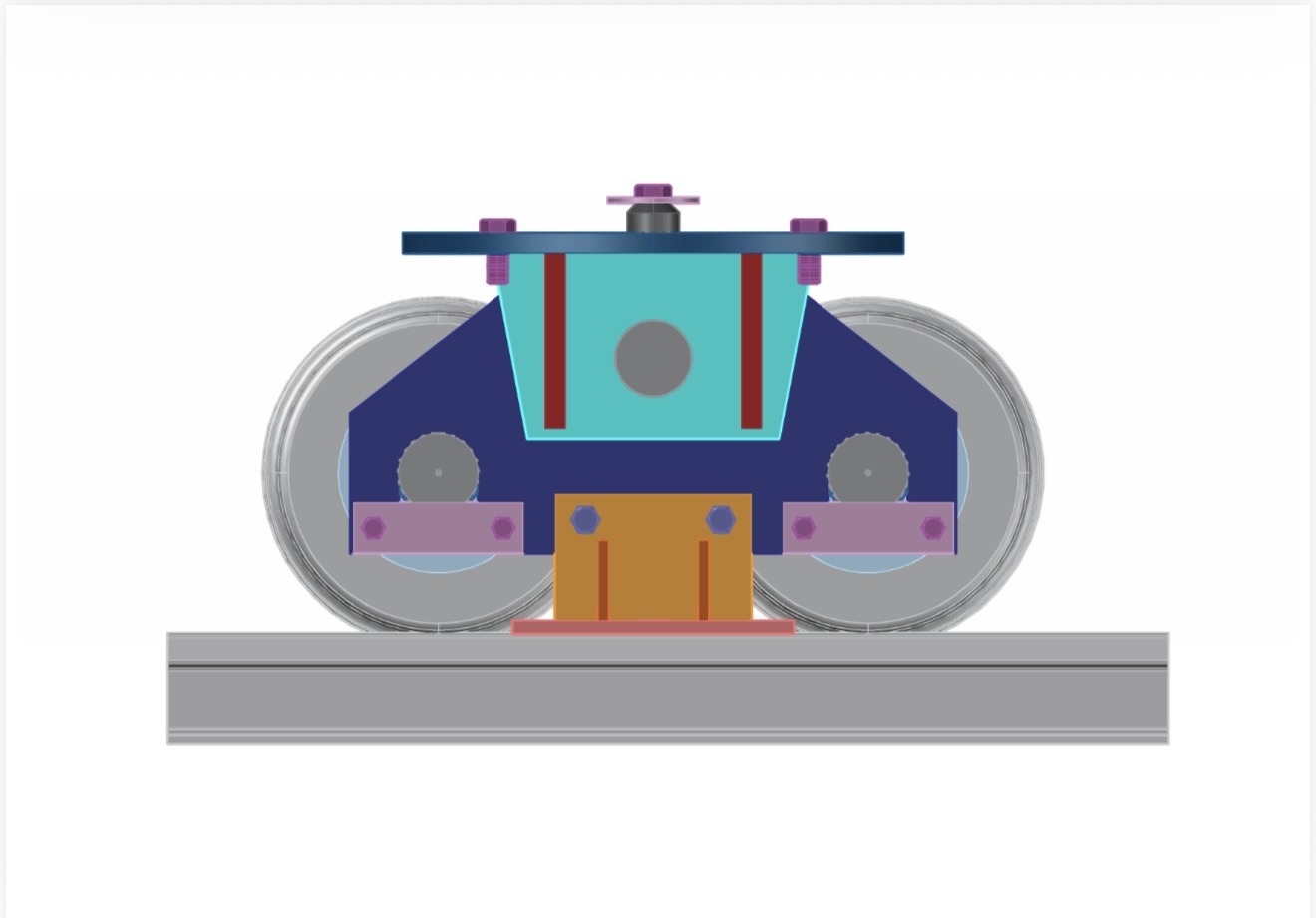

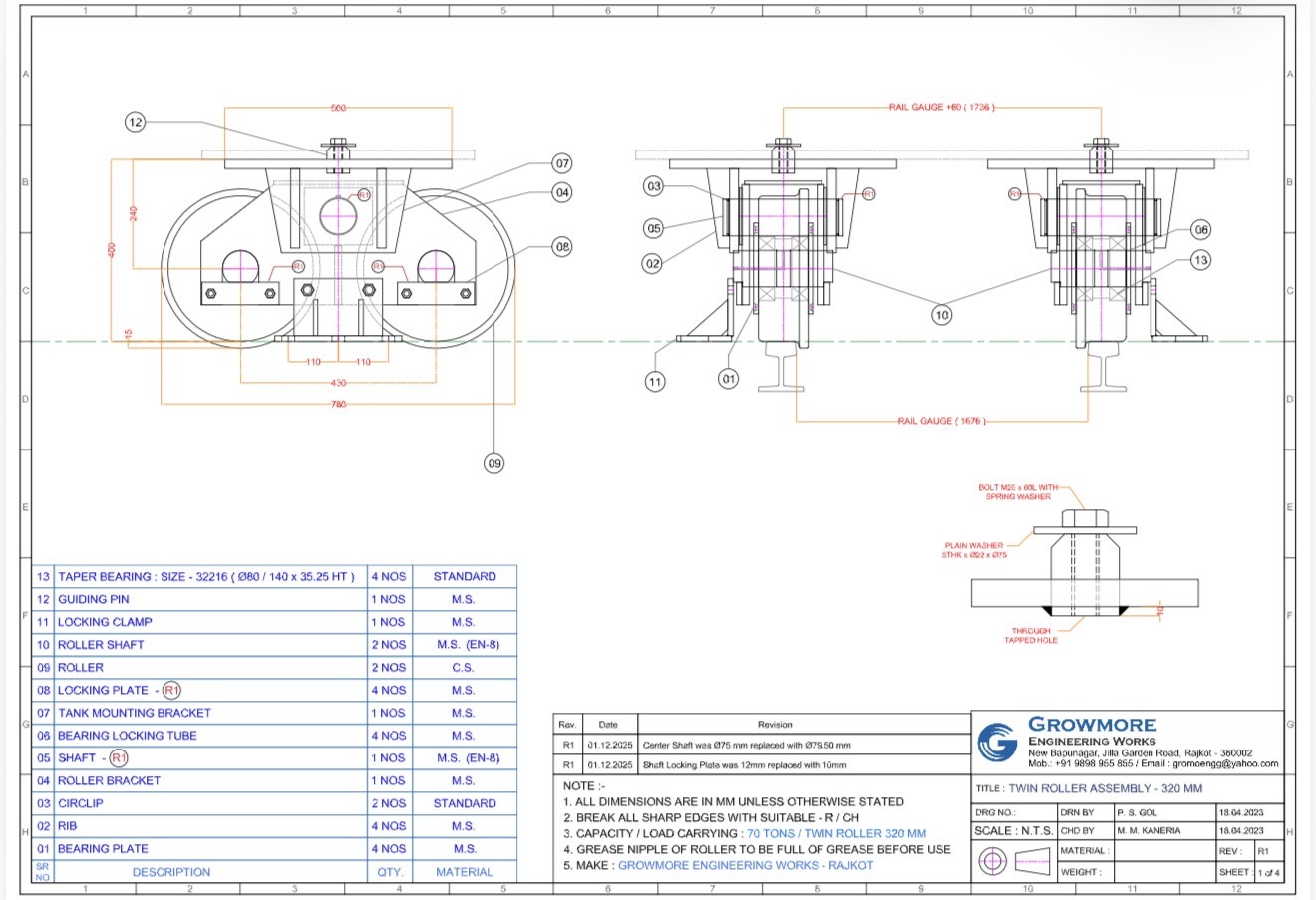

320mm Twin Flange Roller
60 TON
320 mm
CS Twin Flange Roller + Carrier
Twin wheel configuration optimising load distribution for ultra-heavy electrical transformer systems. High stability operation. With or without carrier.
60T Twin Flange CS / CI
W / W/O Carrier
380mm Single Flange Roller
40 TON
380 mm
CS Single Flange Roller + Carrier
Large diameter roller for heavy transformer transport applications. Long service life under continuous industrial loading. With or without carrier.
40T Single Flange CS / CI
W / W/O Carrier

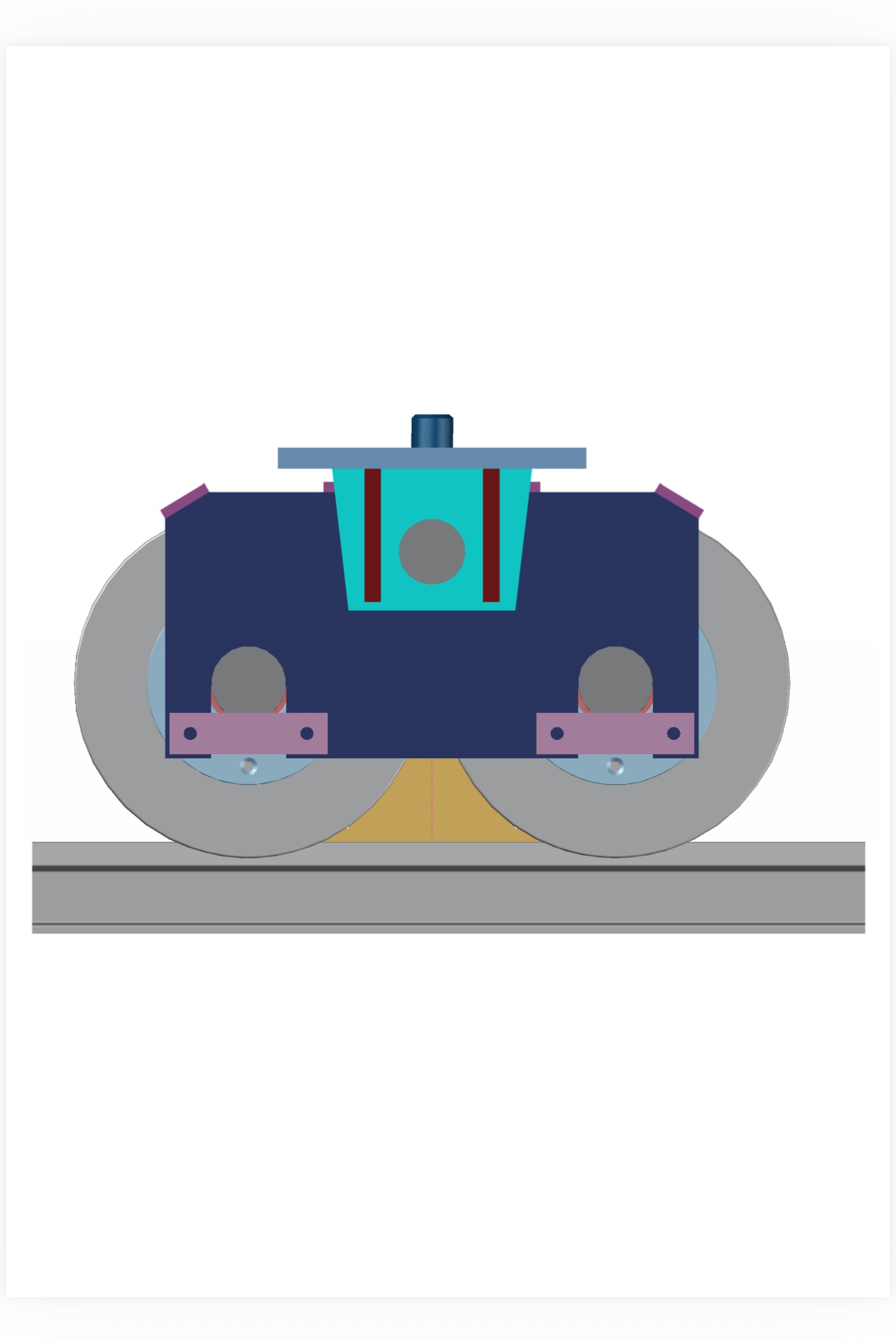

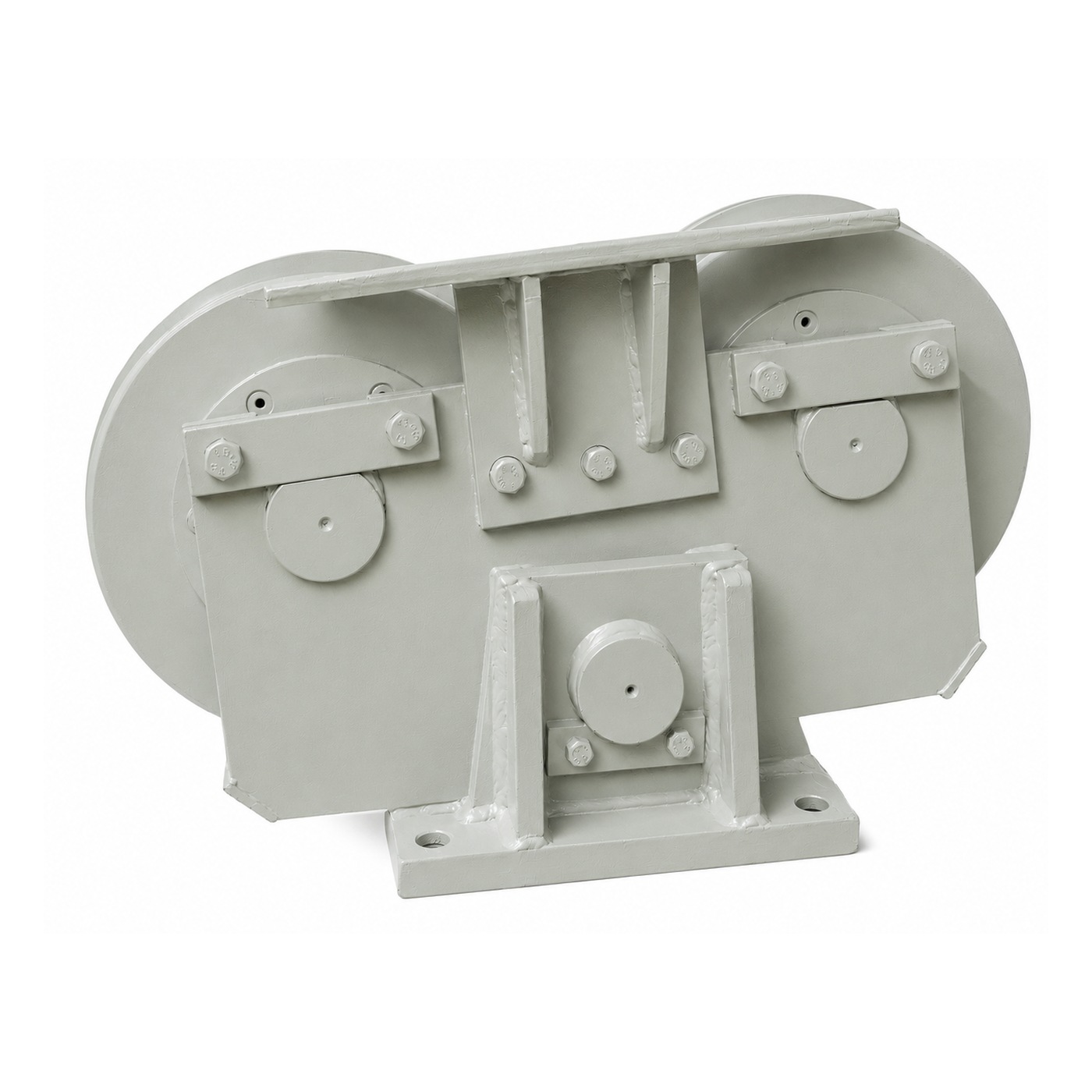

380mm Twin Flange Roller
80 TON
380 mm
CS Twin Flange Roller + Carrier
Maximum-capacity twin flange system for critical heavy-duty transformer transport. Precision guided movement in high-load substations. With or without carrier.
80T MAX Twin Flange CS / CI Severe Duty
Our Highest Capacity Unit
⚡
Custom Sizes up to 440mm Available
We manufacture rollers to any specification — size, capacity, or configuration — as per client drawings and requirements.
Discuss Requirements
Our Capabilities
Why Industries
Trust Growmore

With over 30 years of manufacturing experience, Growmore Engineering Works combines precision machining, rigorous testing, and deep product knowledge to deliver transformer rollers that perform reliably in the most demanding substation environments across India.

⚙
High Machining Capability
CNC-machined components with tight tolerances for long, trouble-free service life.
✓
ISO 9001:2015
Certified quality management system ensuring consistent output across every batch.
📋
Full Test Certificates
Type Test, Material Test & Load Capacity Test Certificates provided with every order.
🔧
Custom Fabrication
Bespoke designs manufactured to any size, capacity, or specification on request.
🚚
Pan-India Supply
Reliable on-time dispatch to transformer manufacturers and utilities across India.
🏭
Bulk Manufacturing
High-volume production capability for large OEM and utility orders.
Growmore rollers installed under transformer
Test Certificates Provided
Type Test Material Test Load Capacity Test
Technical Specifications
Complete
Product Range
Diameter Type Capacity Material Config.
100 mmFlat5TCI / CSWith Bracket
150 mmFlat / Flange8TCI / CSWith Bracket
200 mmFlat / Flange10TCI / CSW / W/O Carrier
250 mmFlat / Flange15TCI / CSW / W/O Carrier
270 mmSingle Flange20TCS / CIW / W/O Carrier
320 mmSingle Flange30TCS / CIW / W/O Carrier
320 mmTwin Flange60TCS / CIW / W/O Carrier
380 mmSingle Flange40TCS / CIW / W/O Carrier
380 mmTwin Flange80TCS / CIW / W/O Carrier
440 mm +As RequiredCustomCS / CIAs Per Specs
Why Our Rollers
Built for
Every Load

Our complete range covers every transformer handling requirement — from compact 5-ton light duty units to massive 80-ton twin flange assemblies for the heaviest power transformers in Indian substations.

All rollers are manufactured to IS/IEC standards, precision-machined for dimensional accuracy, and load-tested before dispatch.

🔩
Cast Iron & Cast SteelBoth materials available for every size in our range — CI for economy, CS for maximum strength and durability.
📐
Precision MachinedAll bearing surfaces, wheel faces, and shaft bores machined to tight tolerances for smooth, reliable operation.
🛡
GM Bush AvailableGunmetal bush option available for all carrier assemblies for superior bearing performance.
⚡
All ConfigurationsFlat, single flange, and twin flange designs. With or without carrier. Clamp, pin, and locking pin options.
📋
Complete DocumentationType Test, Material Test, and Load Capacity Test Certificates supplied with every order.
Ready to Discuss
Your Requirements?

Whether you need a standard off-the-shelf roller or a fully custom solution for a specific transformer application, our team is ready to help. Contact us with your specifications and we'll respond promptly.
