Product Range

Cast Iron & Cast Steel Transformer Rollers

100mm to 440mm diameter · 5 to 80 ton load capacity · supplied with or without carrier

DiameterTypeLoad CapacityMaterial
100mmFlat5TCI
150mmFlat / Flange8TCI / CS
200mmFlat / Flange10TCI / CS
250mmFlat / Flange15TCI / CS
270mmSingle Flange (with carrier)20TCI / CS
320mmSingle Flange (with carrier)30TCI / CS
320mmTwin Flange (with carrier)60TCI / CS
380mmSingle Flange (with carrier)40TCI / CS
380mmTwin Flange (with carrier)80TCI / CS
CustomUp to 440mm, on request—CI / CS

All rollers supplied with or without carrier as per duty class requirement. Custom diameters and load ratings available up to 440mm on request. CI = Cast Iron, CS = Cast Steel.

Light & Medium Duty

100mm – 320mm Rollers

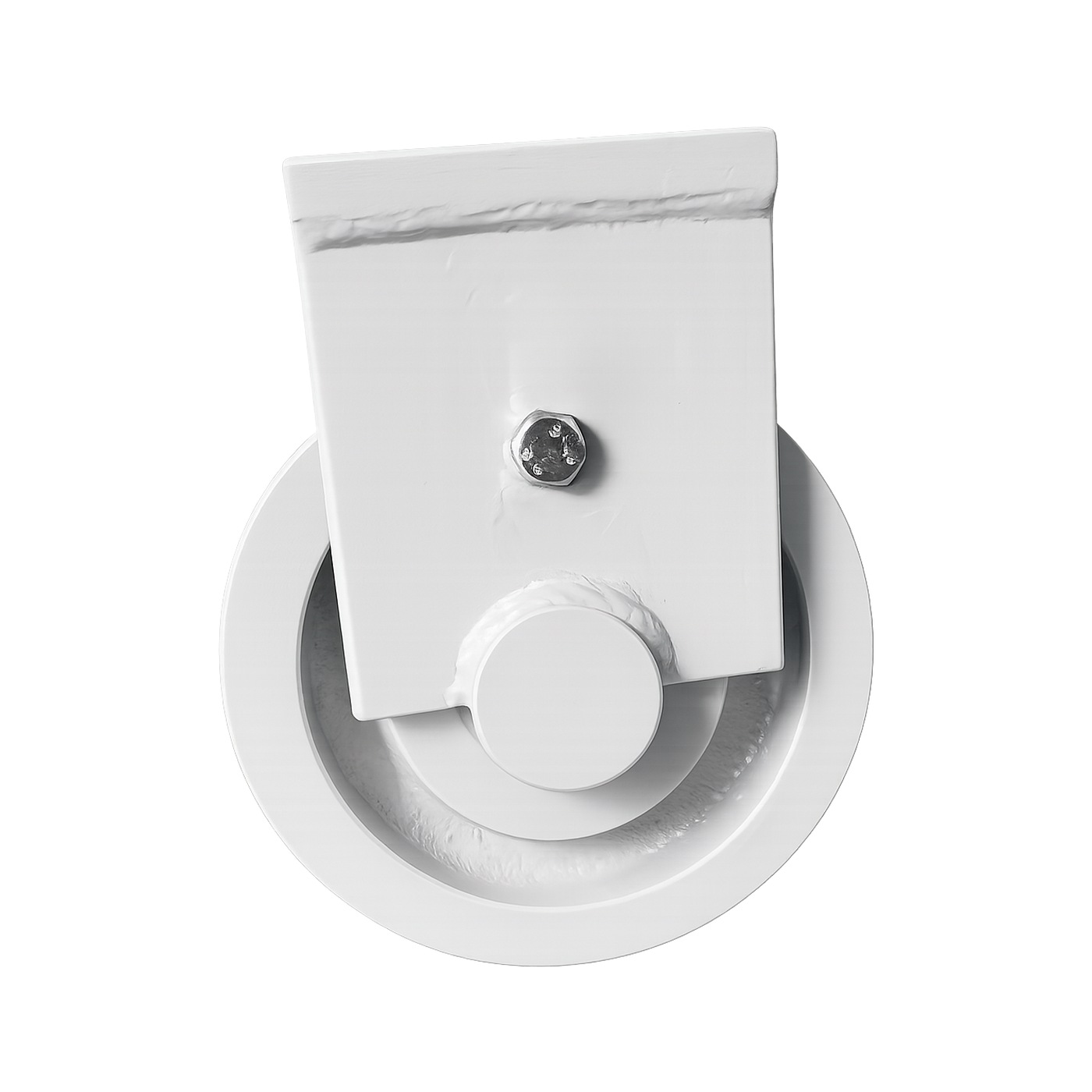

100mm flat transformer roller
Light Duty

100mm Flat

5T  ·  CI
150mm flat and flange transformer roller
Light Duty

150mm Flat / Flange

8T  ·  CI / CS

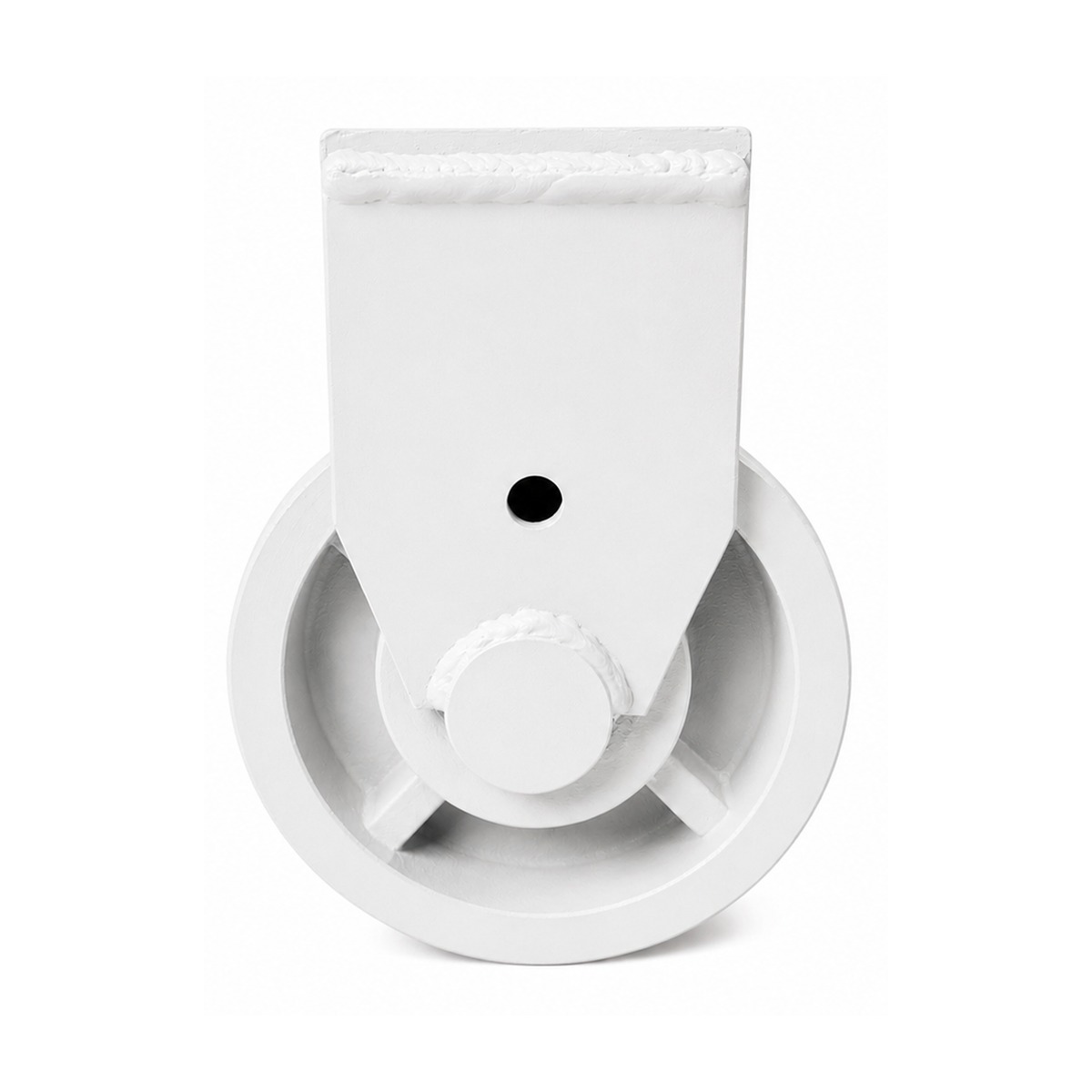

200mm flat and flange transformer roller
Light Duty

200mm Flat / Flange

10T  ·  CI / CS

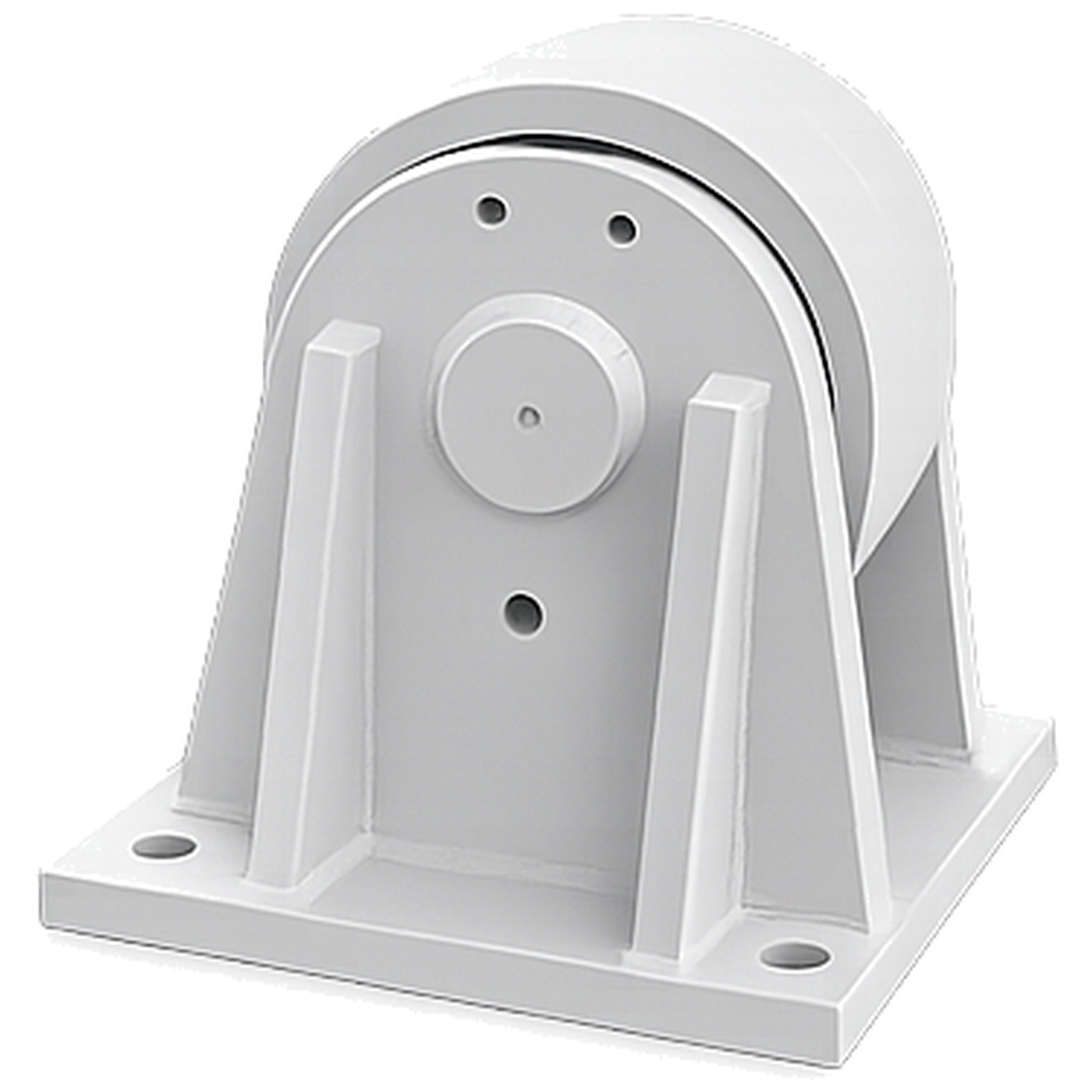

250mm flat and flange transformer roller
Medium Duty

250mm Flat / Flange

15T  ·  CI / CS

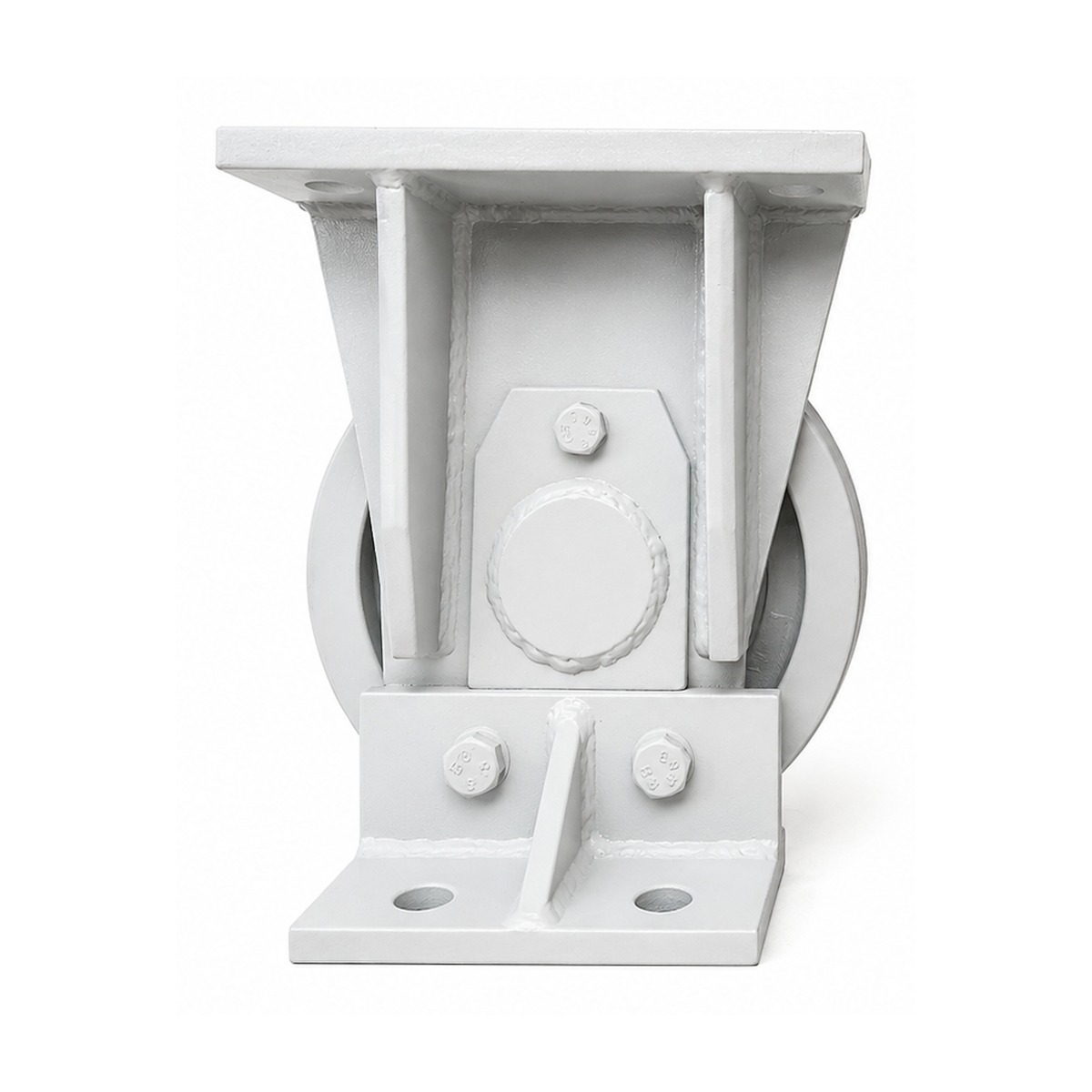

270mm single flange transformer roller
Medium Duty

270mm Single Flange

20T  ·  CI / CS
320mm single flange transformer roller
Medium Duty

320mm Single Flange

30T  ·  CI / CS
Heavy Duty

320mm – 380mm Twin Flange

Reinforced carrier construction for the largest power transformer platforms.

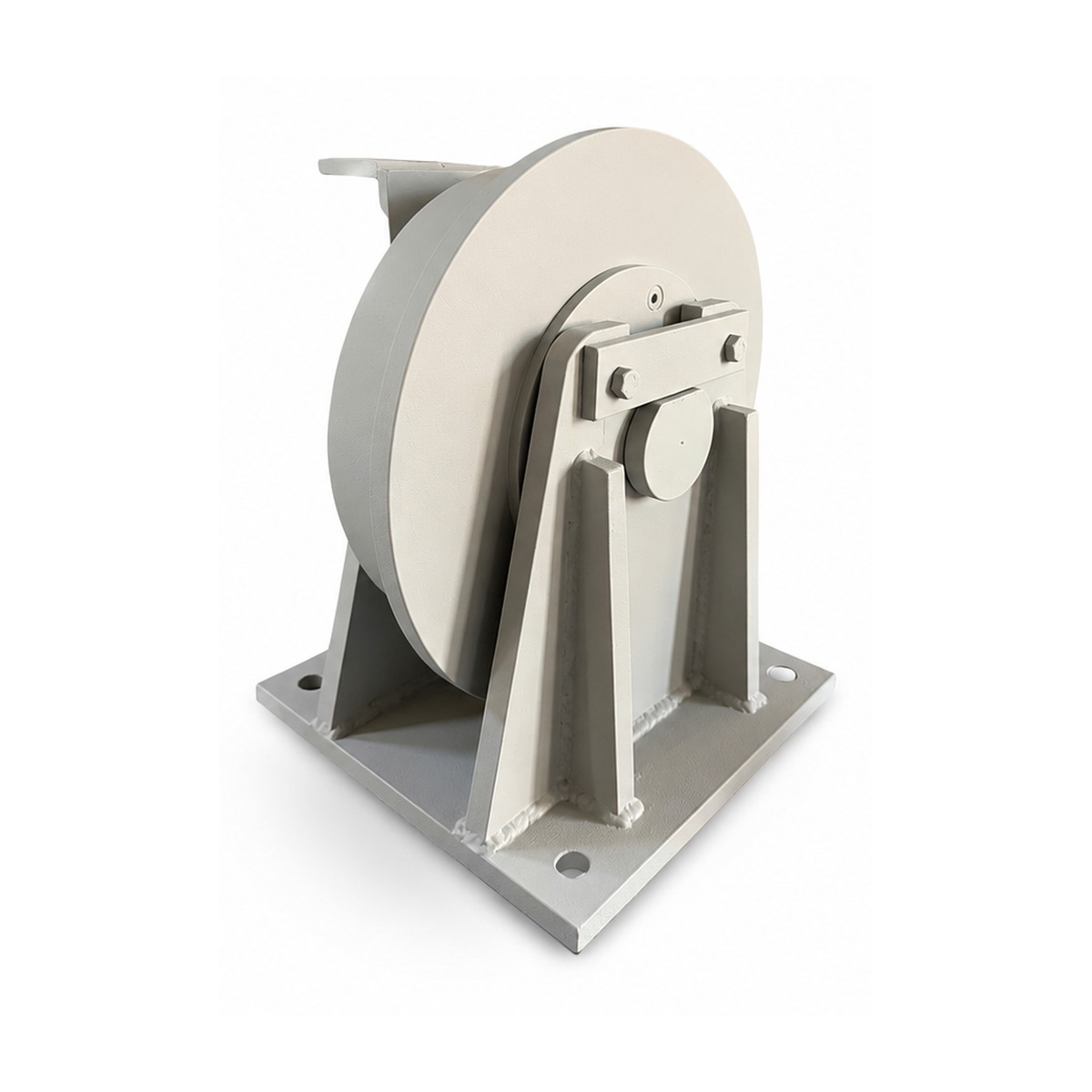

380mm single flange heavy duty transformer roller
Heavy Duty

380mm Single Flange

40T  ·  CI / CS

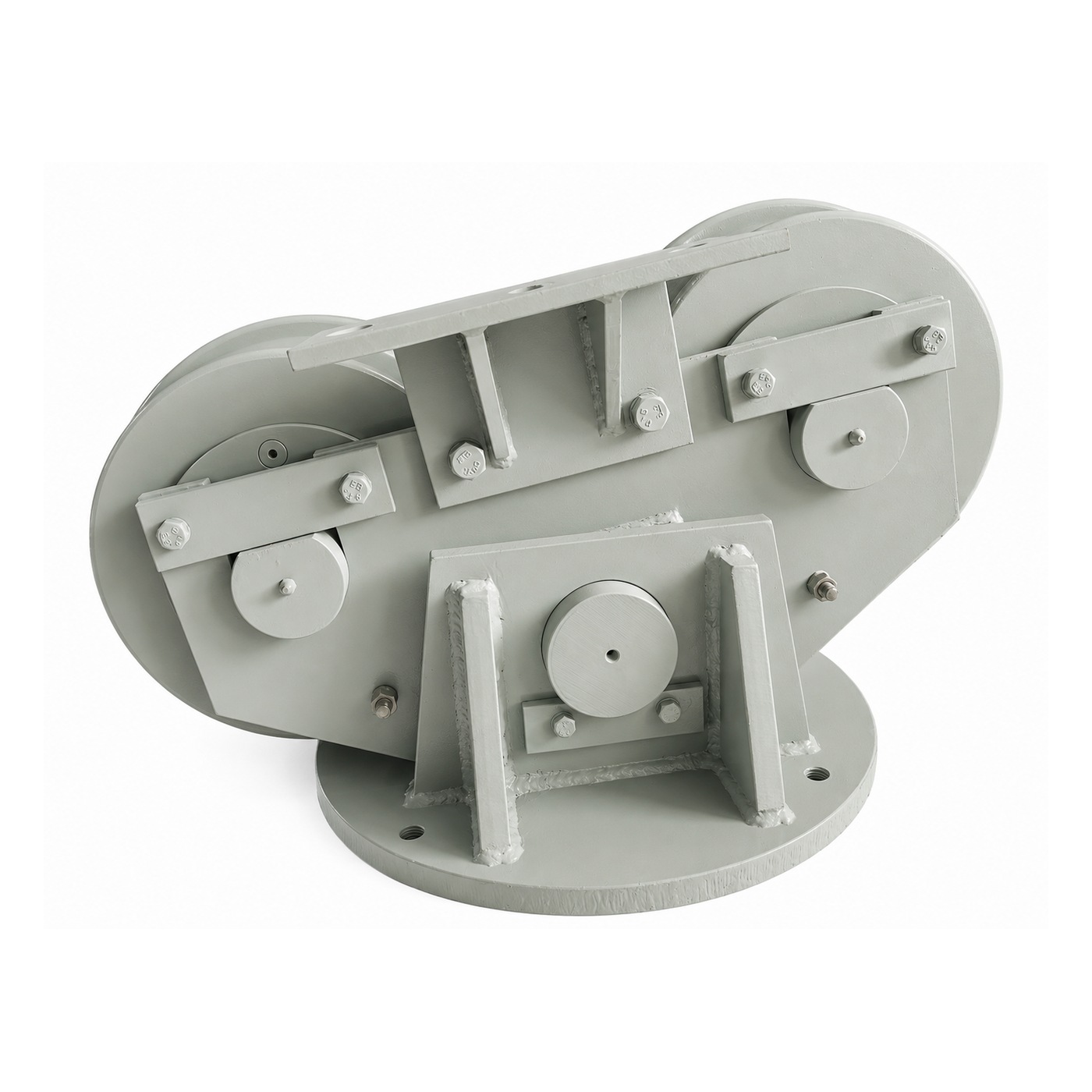

320mm twin flange heavy duty transformer roller
Heavy Duty

320mm Twin Flange

60T  ·  CI / CS
380mm twin flange heavy duty transformer roller, largest standard size
Heavy Duty

380mm Twin Flange

80T  ·  CI / CS
Engineering Detail

From CAD model to certified drawing

Twin-flange assemblies are engineered down to the bearing spec — every dimension controlled, every tolerance documented.

320mm twin roller 3D CAD model, front view on rail
3D Model

320mm Twin Roller — Front View

320mm twin roller 3D CAD model, isometric view
3D Model

320mm Twin Roller — Isometric

380mm twin roller 3D CAD model
3D Model

380mm Twin Roller Assembly

Dimensioned engineering drawing, 320mm twin roller assembly, 70 ton capacity
Engineering Drawing

320mm Assembly — 70T Twin Roller

Dimensioned engineering drawing, 380mm twin roller assembly, 70 ton capacity
Engineering Drawing

380mm Assembly — 70T Twin Roller

320mm twin flange rollers in the colour coating unit
In Production

Colour Coating Unit

Don't see the size you need?

We manufacture custom diameters and load ratings up to 440mm on request.

Request a Custom Quote
